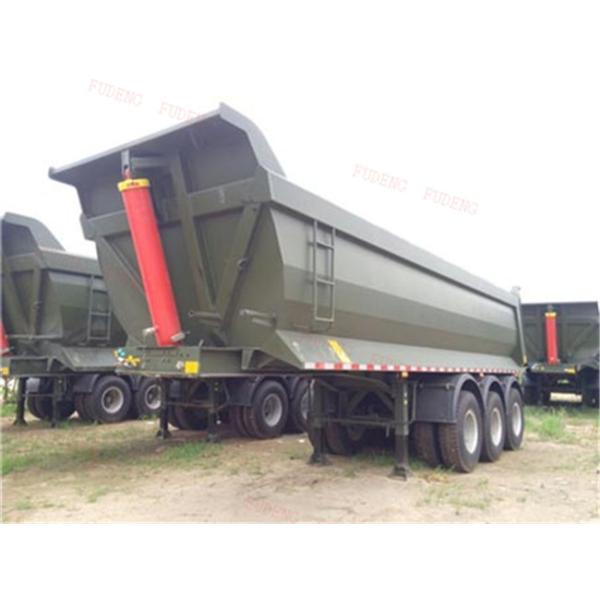

40 Tons Payload U Shape Dump Semi Trailer Box Mechanical Suspension

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

Name: 40 Tons Payload U Shape Dump Semi Trailer Box Mechanical Suspension
Brand: FUDENG Brand Dump Semi Trailers
Price: 1 USD

Brand Name : FUDENG Brand Dump Semi Trailers

Model Number : Dump Semi Trailers

Certification : ISO ,BV,SGS

Place of Origin : Shandong,China(Mainland)

MOQ : One unit Dump semi trailers

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500Units per Month

Delivery Time : 20-30days after deposit

Packaging Details : Nude packing.Shipping by the Bulk cargo or Ro-Ro

No.Axles : 2/3/4 Axles

Suspension : Mechanical suspension

Color : Customized

Landing Gear : JOST 28Tons

Payload : 60Tons

Shape : Square shape

Tire : 11.00R20, 12.00R20,12R22.5, 385/65R22.5

Functions : Transport sand,earth work, stone,etc

Price : negotiation

Contact Now

40Tons Dump semi trailers 3 axles End Dump Tipper Truck Semi Trailer for stone

1.U shape for efficiency:U shape box,the rate of discharge can reach to 100%,saving time and

labor

2.Capable of rough road condition:international standard heavy duty chassis and running system

applied to cope with rough road condition;

3.Light design:high tensile steel material and advanced design to achieve lower weight with high

carrying capacity,reduce operation cost;

4.Surface treatment:(shot blasting+painting)Zinc-rich-primer and polyurethane

topcoat as customers’ choices.

5.Options:other valuable features are of your participation,just tell us your idea and we will work

out the right trailer for you;

Specifications
Tank Body
Shape	U shape
Dimension	92.71.85m (Outside)
Box Dimension	8.32.61.85m 40cbm
Payload	40Tons
Tare weight	About 11T
Lifting system	196 hydraulic jacking Hyva Brand
Chassis
Frame	Welding design or Special design Two beams.Square beam, connected by bolts and nuts, Q345B carbon steel material Two beams.
Frame Beam	Upper and lower plate is 16mm and 18mm, middle is 8mm.height is 500 mm Bottom plate :5mm Side plate:5mm
Axle	3 axles, 16T FD Brand
Landing Gear	Standard 28T JOST brand
King Pin	2.00 or 3.5 inch bolt-in king pin JOST brand
Suspension	Mechanical suspension
Leaf Spring	90mm(W)16mm(T)10 Layer
Pneumatic	WABCO RE 6 relay valve, 3 axles synchronization
Braking System
Tire	315/80R22.5 optional
ABS	KEMI brand

Dump semi trailers Model.

40Tons Dump semi trailers.

40 Tons Payload U Shape Dump Semi Trailer Box Mechanical Suspension

Welcome to visit our factory!
